R: Programming and Interface Language

Workflow: Now

  • all R code
    • interface/pipeline tool
    • “native” R code

Complete pipeline

  • preprocessing and analysis
flow

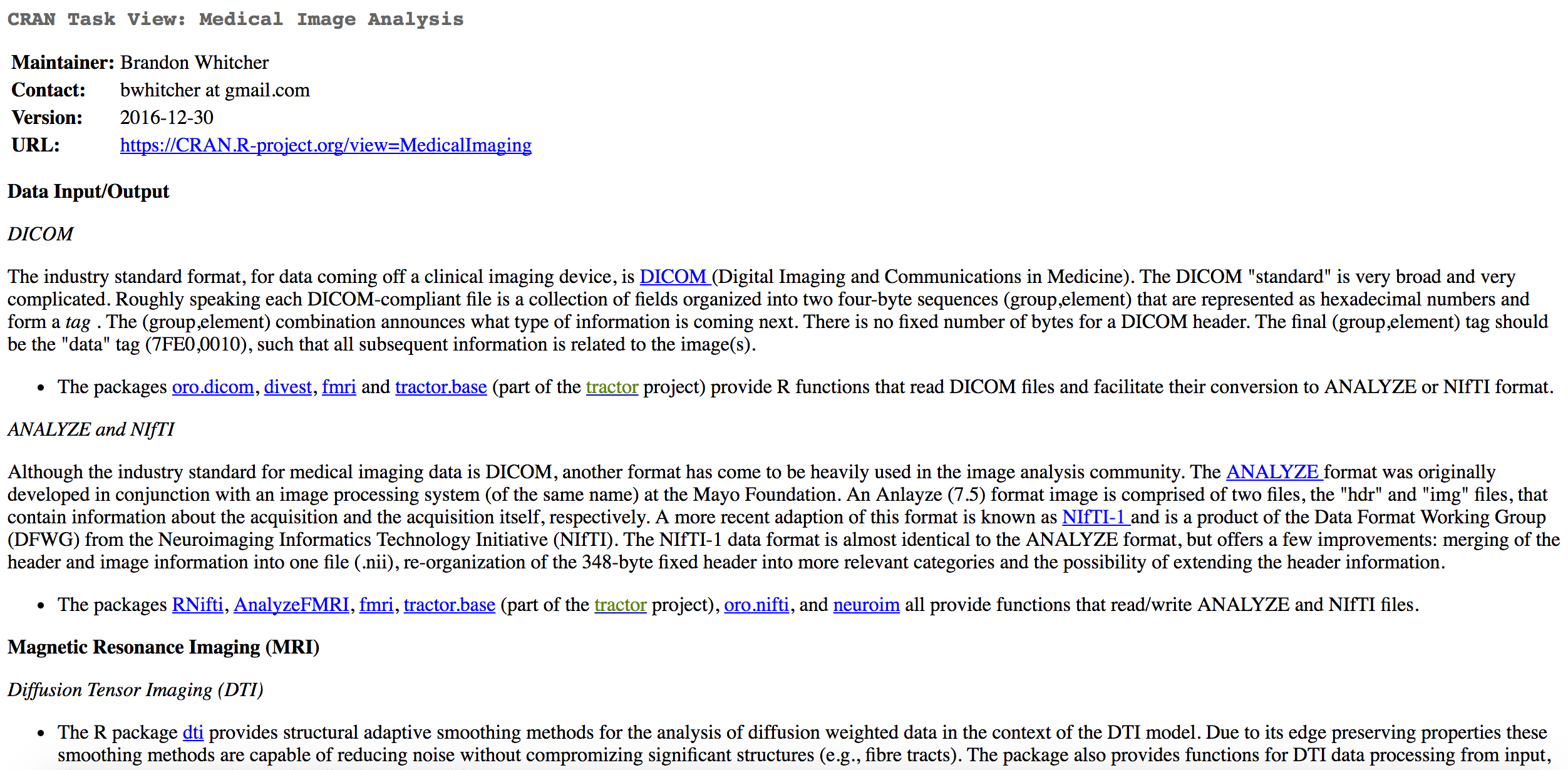

Imaging in R: Now

Weaknesses of Imaging in R

Strengths of Imaging in R

  • Free
  • Large/strong R community
  • RStudio
  • Validated statistical models
  • Package development system

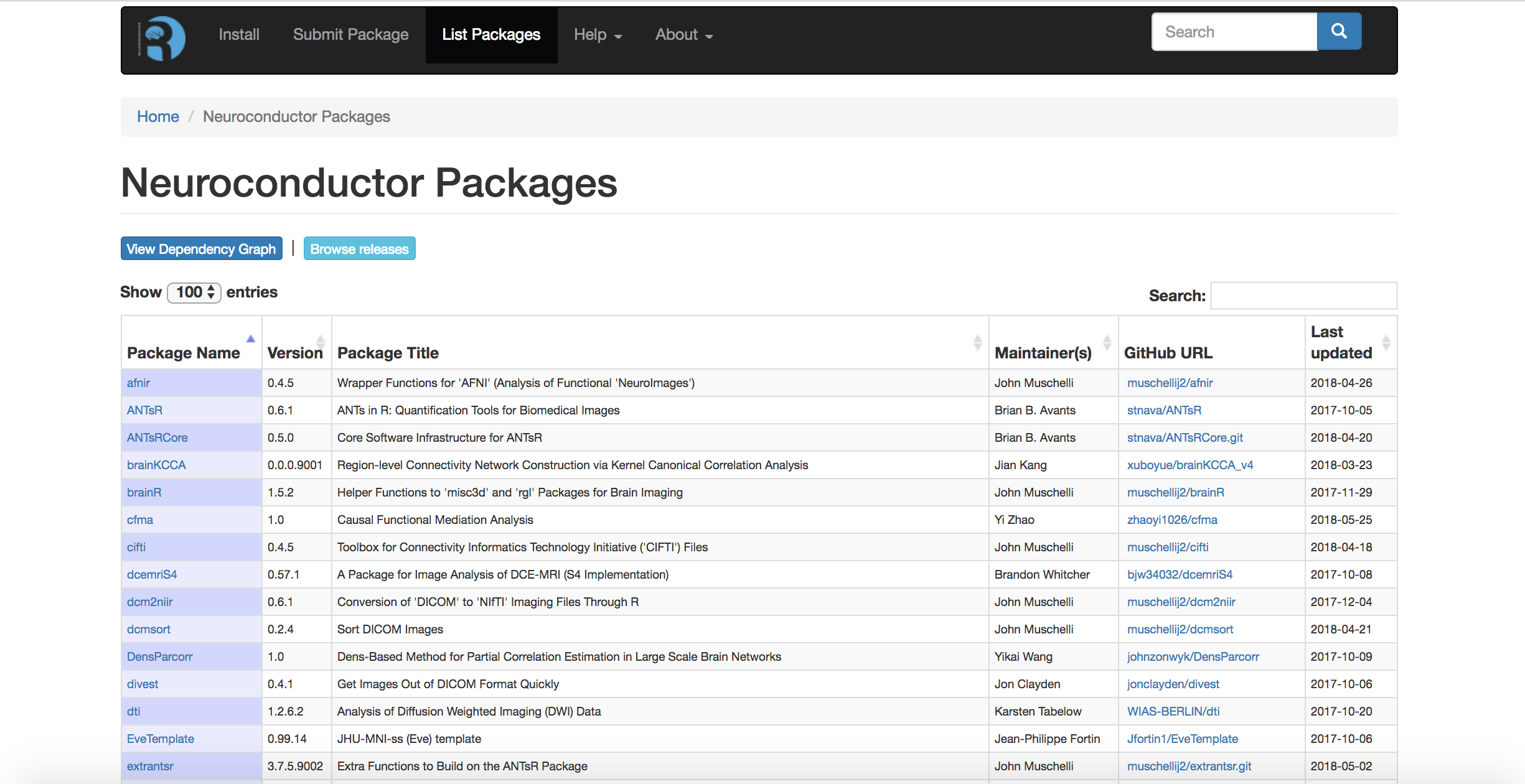

  • Neuroconductor
  • Shiny

Threats of Imaging in R

  • Not much different than Python
    • scikit-learn/ Nipype
  • Neural Networks
  • BME have tools for advanced statistical analysis
  • Study design is not as valued in imaging (neuro)
    • one stronghold of statisticians
  • Credit/Incentives for software

Opportunities of Imaging in R

Opportunities: CONSORT diagrams

Opportunities: Moving from Linear Models

  • Task fMRI: compare baseline to 1+ conditions
  • Smoothed to account for neighborhood
  • Run LM on time-series voxelwise with AR-type correlation with HRF-convolved design matrix (\(X\)) + motion/other factors (\(Z\))

\[ Y_{iv} = X_{i} \beta_{iv} + Z_{i}\theta_{iv} + \varepsilon_{iv} \\ \varepsilon_{iv} \sim N(0, \Sigma_{iv}) \\ \Sigma_{iv} \sim \text{AR} \]

\(Z_{i}\) can be different for each \(i\) (scrubbing), but usually isn’t.

Opportunities of Stats in Imaging

  • Get \(β_i\) map in MNI space
  • Run t-test, random effects analysis (hard to find sometimes), or permutation test
  • Perform multiple comparisons correction (maybe with spatial compoent)

Opportunities of Stats in Imaging

  • What if the motion had a non-linear effect?
    • currently: use derivatives and squared effects
    • why not GAMs? (speed)voxel package
  • fully Bayes (spatial) hard because of data size (maybe empirical)

Opportunities of Stats in Imaging

Opportunities: Data

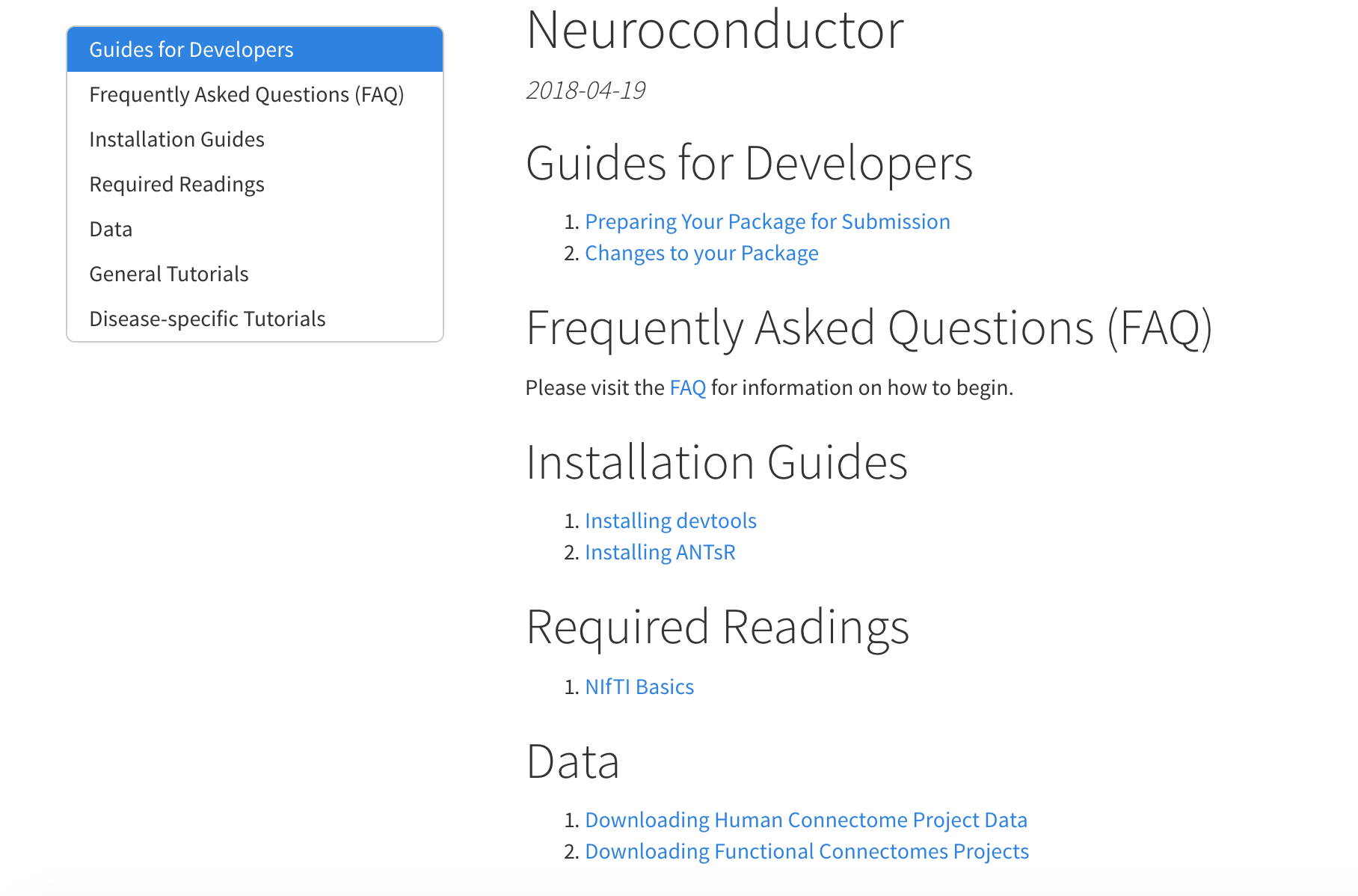

What we need: tutorials

What we really need: tutorials on fMRI

What we need: Shiny GUIs

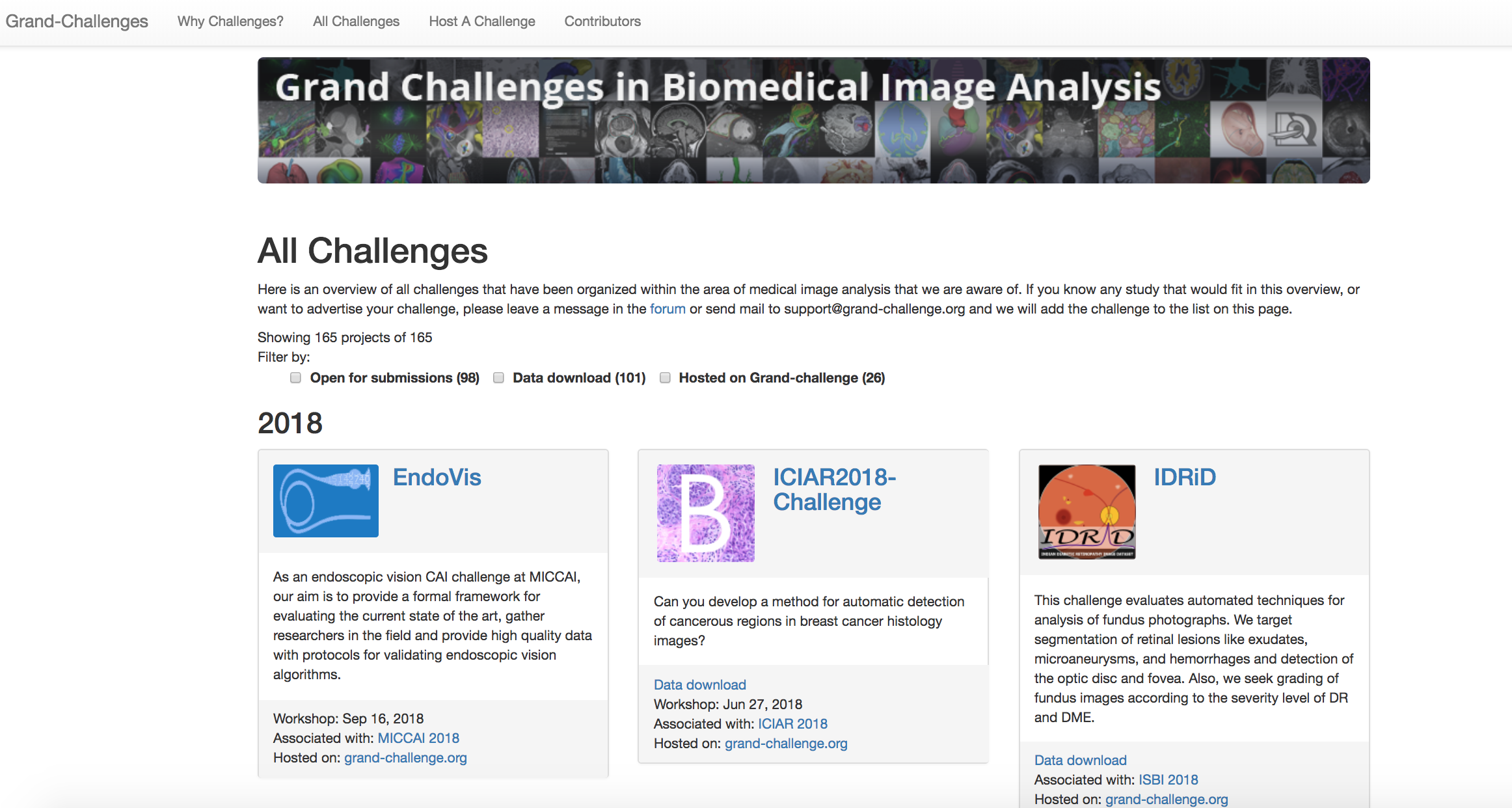

(Maybe) What we need: challenges

“Pre”-processing is Important

“Pre”-processing is Hard

Package Showcase

Data

  • EveTemplate/MNITemplate - templates
  • kirby21 series
  • sri24 - SRI24 MRI Atlas
  • malf.templates - templates for label fusion
  • neurohcp - download data from HCP/INDI
  • nitrcbot - download data from NITRC
  • neurovault - download data from https://neurovault.org/

General Imaging Tools

Starting from Raw Data/DICOM

  • oro.dicom - read/write DICOM data
  • dcm2niir - uses dcm2niix from Chris Rorden
  • divest - Rcpp wrapped dcm2niix
  • dcmtk - interface package for DCMTK
  • matlabr - could use dicomread MATLAB code and excecute through R

Interactive Visualization using papayaWidget

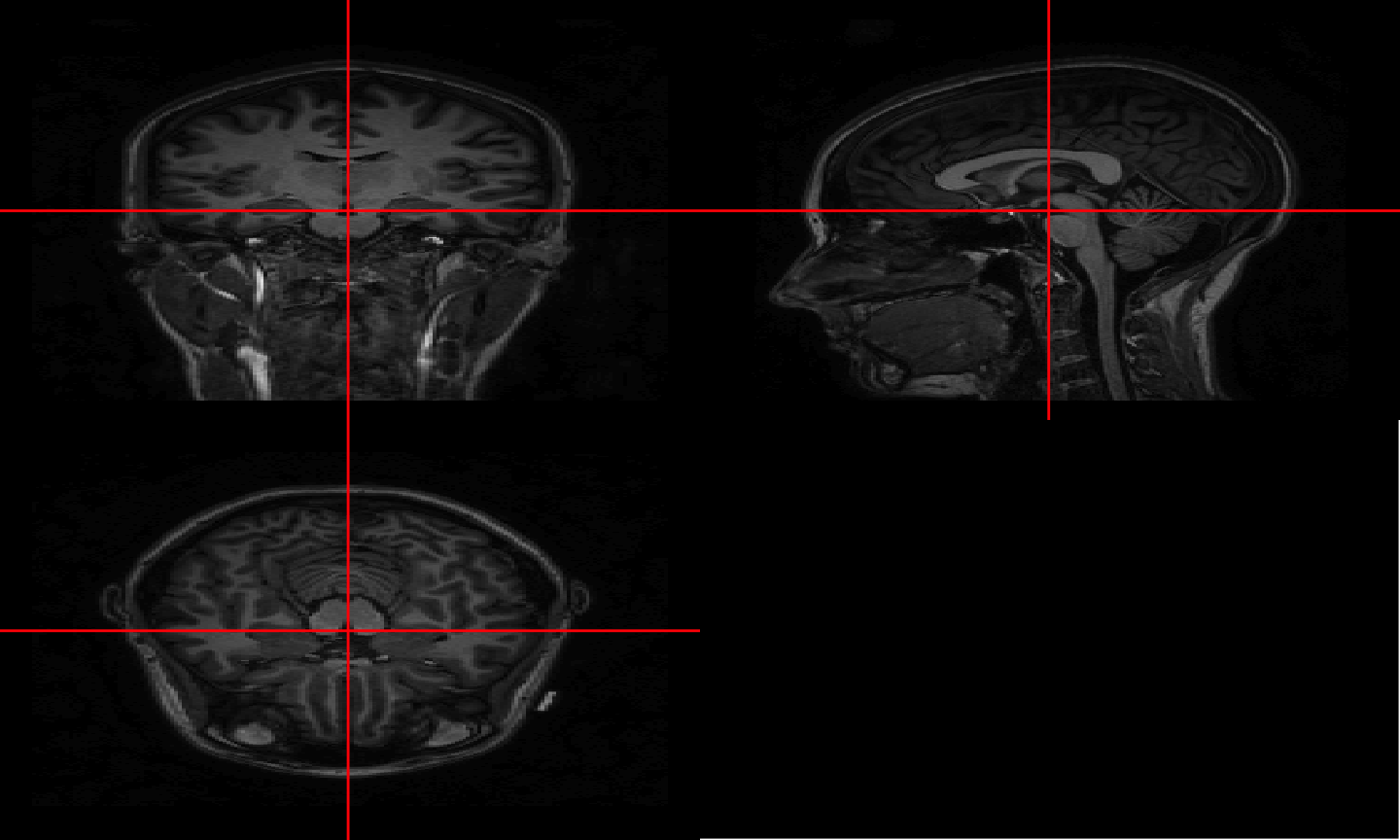

ggneuro visualization: ggplot2 object

Intensity Normalization

  • whitestripe - WhiteStripe (Shinohara et al. 2014)
  • Quantile transform quantile_img (in neurobase)
  • Whole brain z-scoring: zscore_img in neurobase
  • RAVEL - Fortin et al. (2016)
  • Histogram matching (in RAVEL)
  • General standardization methods

MS Lesion Segmentation

  • sublime - E. Sweeney et al. (2013)
  • oasis - Sweeney et al. (2013)
  • mimosa - Valcarcel et al. (2018)
  • smri.process - my package on sMRI processing

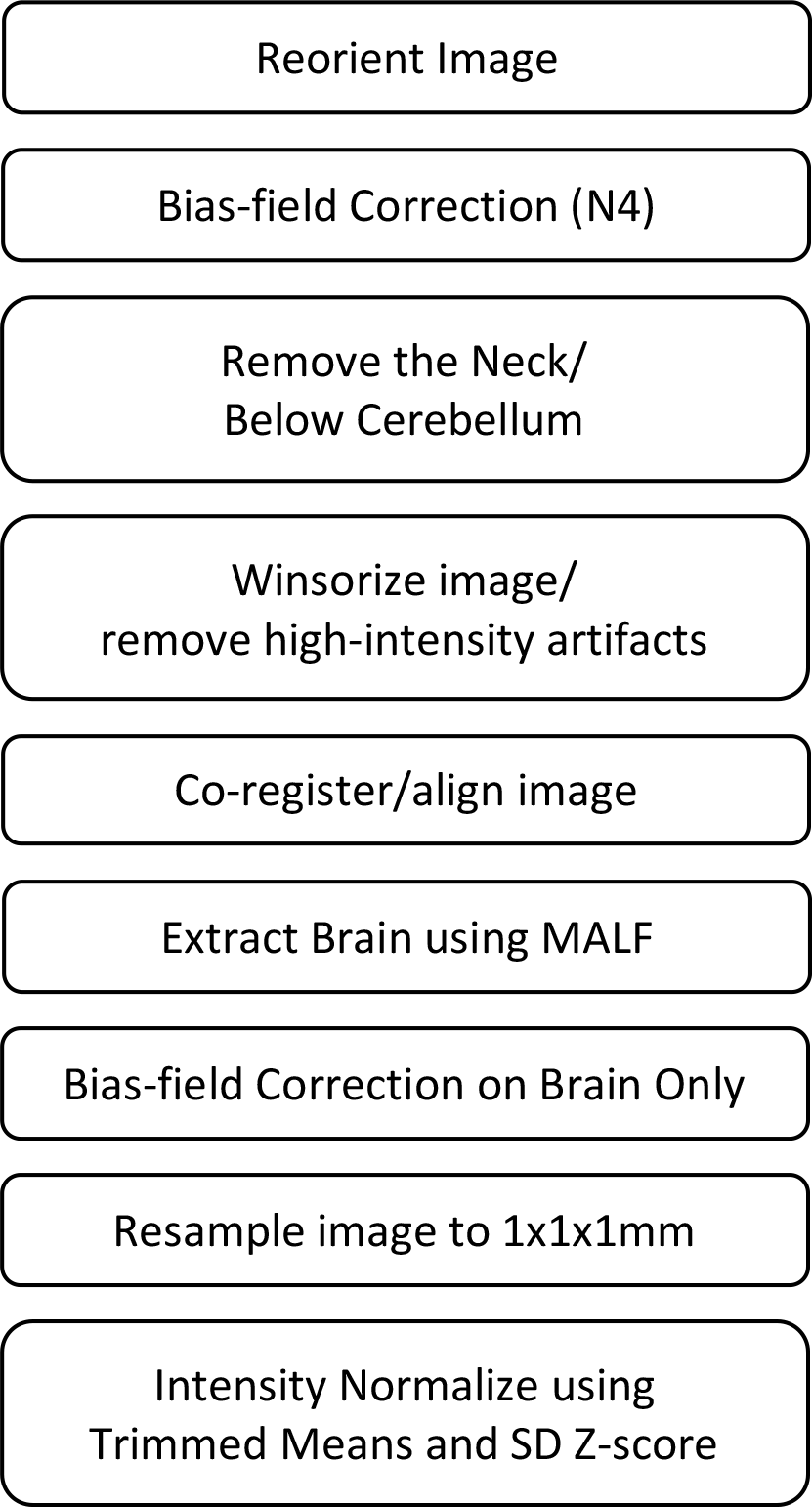

Step 1: Image Processing: Workflow

The N4 (Tustison et al. 2010) EM-style model assumed is: \[ \log(x(v)) = \log(u(v)) + \log( f(v) ) \]

  • \(x\): given image
  • \(u\): uncorrupted image
  • \(f\): bias field
  • \(v\): location in the image

Image Processing: MALF

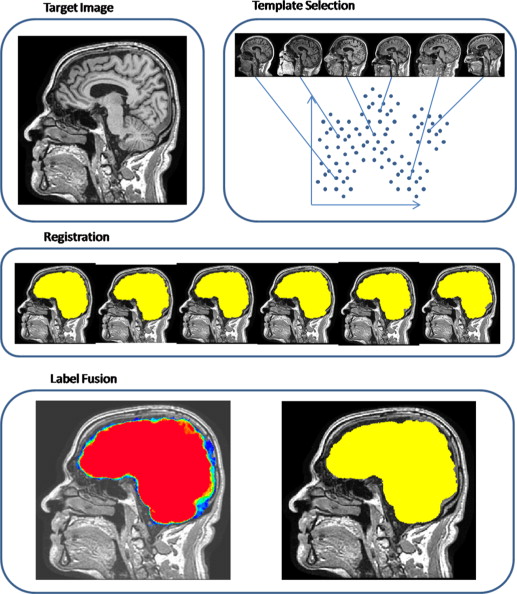

Figure from MASS paper (Doshi et al. 2013):

  • Register templates to an image using the T1 for that subject
  • Apply transformation to the label/mask
  • Average each voxel over all templates
    • there are “smarter” (e.g. weighted) ways

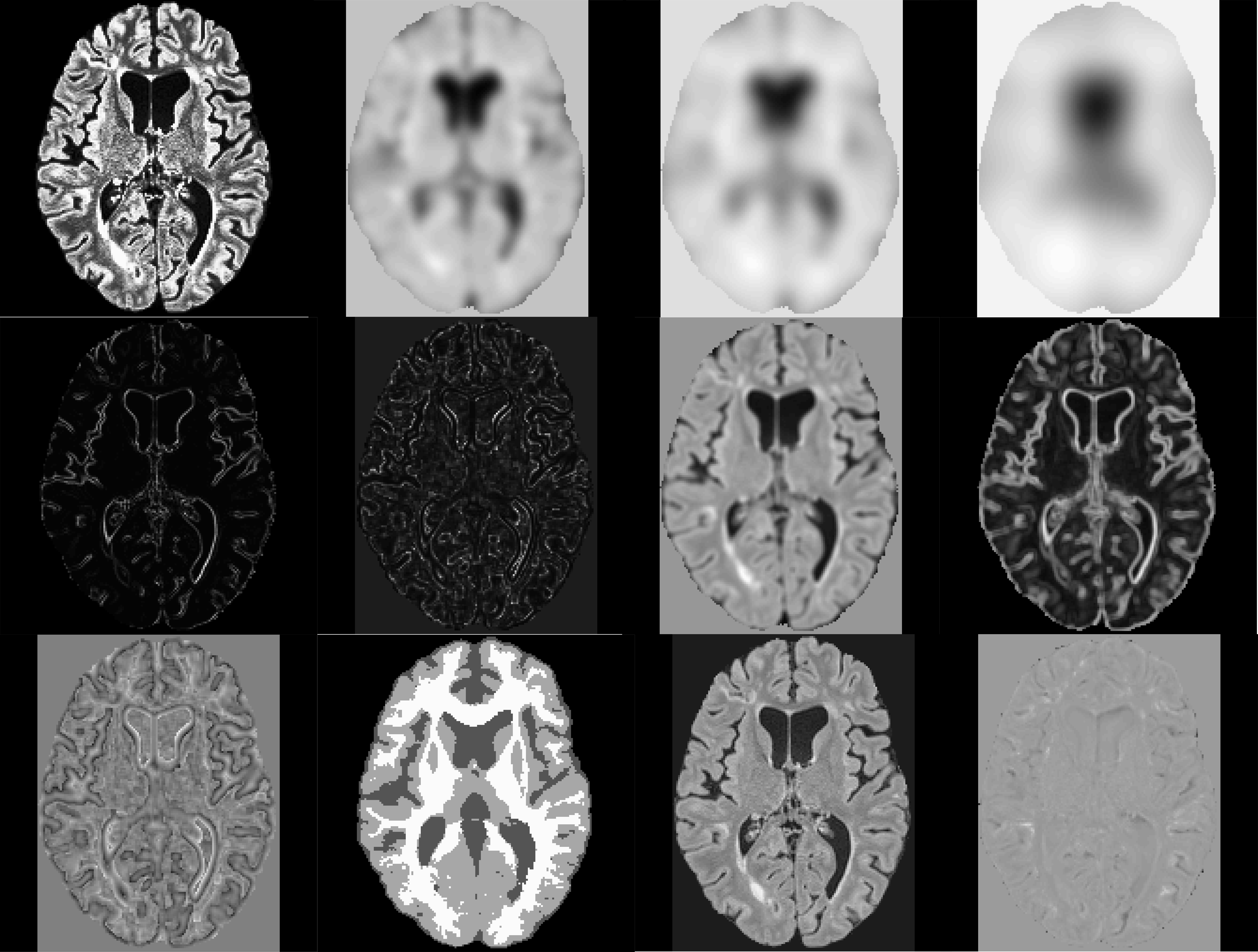

Step 2: Create Predictors for each Sequence

Preds

  • Predictors created with intensity-normalized data
    • Quantile images, smoothers, local moments
  • Tissue class probability with local moments: MALF and FAST (Zhang, Brady, and Smith 2001)
  • Z-score to a population template

A package to do all this: smri.process

  • GitHub package (muschellij2/smri.process)

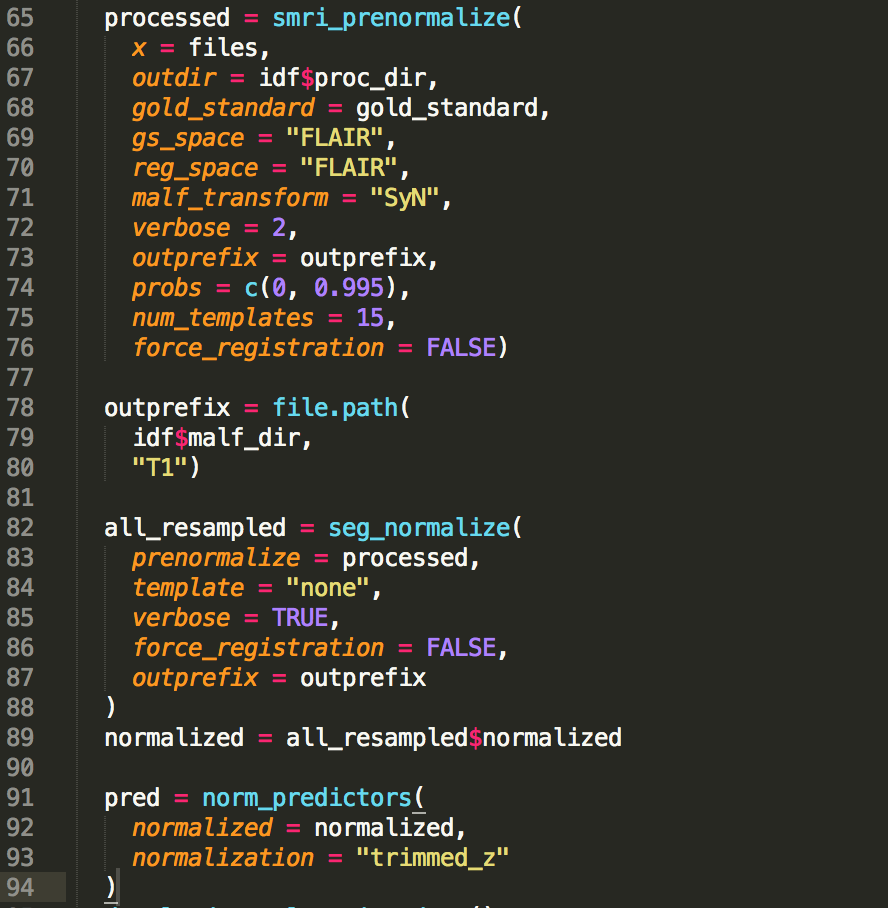

code

Publishing software

Tracking downloads

Conclusions

  • Many methods are being developed for processing neuroimaging in R
  • Analysis tools exist but need adaptation
  • Develop more standardization like BioConductor
    • standard data structures
  • GitHub and Neuroconductor

Where else can statisicians lead?

Do we need spatial results? If not, why register to the template?

Registration

ANTsR/extrantsr

  • antsRegistration - rigid/affine/non-linear diffeomorphic
  • extrantsr::registration - wraps antsRegistration to use nifti objects

fslr

  • flirt - linear/affine registration
  • fnirt - non-linear registration (need affine first)
  • fnirt_with_affine - wraps above 2
